Coaxial Transmission Line Geometry

with 2 comments

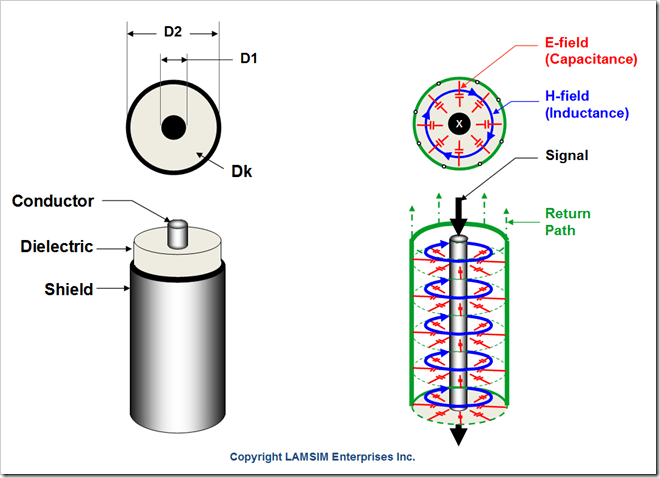

The coaxial (coax) transmission line geometry, described by Figure 1, consists of a center conductor; imbedded within a dielectric material; surrounded by a continuous outer conductor; also known as the shield. All share the same geometric center axis; hence the name coaxial. It is common practice to transmit the signal on the center conductor, while the outer conductor provides the  return path  for current back to the source. The shield  is usually grounded at both ends.

Figure 1 Example of a coaxial transmission line geometry and the electromagnetic
field patterns with respect to the current through the structure.

As the signal propagates along the transmission line, an electromagnetic field is set up between the outer surface of the center conductor and the inner surface of the shield. As illustrated in red, the electric E-field  pattern sets the capacitance per unit length, and the magnetic H-field, in blue, sets the inductance. For the center conductor, the “X” represents current flowing into the page and the “.” (dots) within the shield ring is current flowing out of the page.

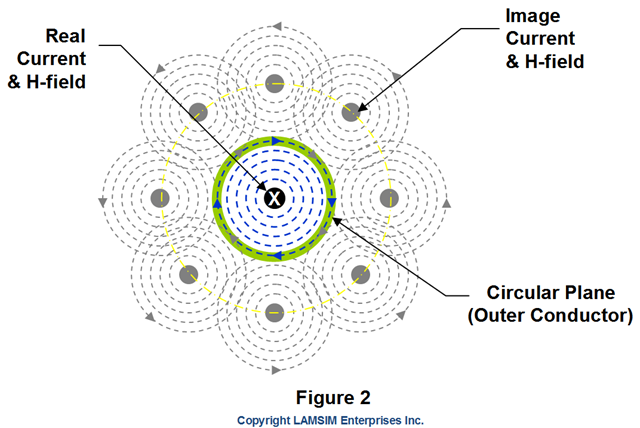

Figure 2 describes the magnetic-field relationship for a coax geometry. As current propagates along the center conductor, concentric magnetic-field lines (blue) are created in the direction as shown following the right hand rule.

imageWhenever an AC current carrying conductor is in close proximity to a conducting plane, some of the magnetic-field lines penetrate it. If this plane totally surrounds the inner conductor, it becomes the outer conductor in a coax geometry, and some of the magnetic-field lines penetrate the entire circumference.  When the current changes direction, the associated magnetic-field lines also change direction, causing small voltages to be induced in the outer conductor. These voltages create eddy currents, which in turn, produce their own magnetic-fields.

Eddy current-induced magnetic-field line patterns look exactly like magnetic-field lines  (grey) from imaginary currents  surrounding the outer conductor. These imaginary currents are referred to as image currents, and have the same magnitude as the real current; except they are in the opposite direction [1]. For simplicity, there are only eight image currents shown. But in reality, there are many more; forming a continuous loop of imaginary currents on  a radius equal to twice the radius of the outer conductor to the center of the circle. The image currents create associated image magnetic-field lines in the opposite direction of the real field lines. As a result, the real magnetic-field lines are compressed and are entirely contained within the outer conductor.

The outer conductor thus forms a shield preventing external magnetic-fields from coupling noise onto the main signal and likewise, prevents its own magnetic field from escaping and coupling to other cables or equipment. This is why it is a popular choice for RF applications.

The nice thing about a coaxial transmission line is you can use equations to calculate the exact inductance and capacitance per unit length. There are only two other geometries that can do the same. They are, twin-rod and rod-over-plane; which I will cover at a later time in separate design notes.

The relationships between capacitance, inductance and impedance can be expressed by the following equations:

Where:

Ccoax = Capacitance – F

Lcoax = Inductance – H

Zo = Characteristic Impedance – Ohms

Dk = Effective Dielectric constant

Len = Length of the rods

D1 = Diameter of conductor

D2 = Diameter of shield

The coaxial structure can be flexible or semi-rigid in construction. Flexible coax is used for cable applications; like distributing cable TV or connecting radio transmitters/receivers with their antennas. To achieve its flexibility, the shield is usually braided and is protected by an outer plastic sheathing. Being flexible, the same cable can be reconfigured for different equipment applications.

Semi-rigid coax, in comparison, employs a solid tubular outer shield, which yields 100% RF shielding, and enables the dielectric material and center conductor to maintain a constant spacing; even through bends. If you have ever worked on your automobile brakes, semi-rigid coax resembles the rigid brake lines routed through the chassis to the wheels. Semi-rigid coax is usually used for microwave applications where optimum impedance control is required.  A bending tool is needed to form it to a consistent radius. After initial forming and installation, it is not intended to be flexed or reconfigured.

[1] “Signal Integrity Simplified”, Eric Bogatin

Written by Bert Simonovich

February 22, 2011 at 8:57 pm

PCB Vias – An Overview

with 6 comments

imageVias make electrical connections between layers on a printed circuit board. They can carry signals or power between layers. For backplane designs, the most common form of vias use plated through hole (PTH) technology. They connect the pins of connectors to inner signal layers. A PTH via is formed by drilling a hole through the layers to be connected and then copper plating it.

High Density Interconnects (HDI) is another via technology used to form very small vias where drilling holes, using a conventional drill bit, is impractical. Also known as micro-vias, this technology creates the hole with a laser before plating.

Via Aspect Ratio

Via aspect ratio is defined as the ratio of the circuit board thickness to the smallest unplated drilled hole diameter. It is an important metric you need to be aware of when specifying the minimum via hole size for your design, and designing your stack-up. For example, an unplated via with a drill diameter of 0.020 inches and a board thickness of 0.200, would have an aspect ratio of 10:1. The smaller the aspect ratio, the more consistent the plating is throughout the length of the via. It is desirable to have 2 mil plating thickness for the via walls. Large aspect ratio vias tend to have more plating at each end compared to the middle. This increases the chance of cracked via barrels due to z-axis expansion while soldering.

An aspect ratio of 6:1 pretty much ensures your board can be fabricated anywhere. Most high-end board shops have the capability of fabricating boards with 10:1 aspect ratio; for drill diameters of less than 0.020 inches. Practically, the smallest drill diameter used for a through holed via is 0.013 inches. At 10:1, the maximum board thickness would be 0.130 inches.

For drill diameters larger than 0.020 inches, the max aspect ratio can be anywhere from 15:1 to over 20:1; depending on the board shop. Since backplane via hole size is driven by the compliant pins of the connector, it is best to work with your board shop to determine the maximum board thickness they can fabricate with the minimum finished hole size (FHS) specified in the design.

Via Configurations

The following lists the various via configurations you might expect to find on any multi-layer PCB design:

  • Stub Via
  • Through Via
  • Blind or Micro-via
  • Buried Via
  • Back-drilled Via

Stub Via

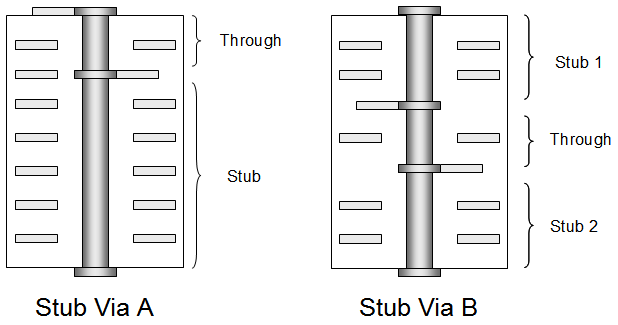

imageThe Stub Via is the most common via configuration found in PCBs today. As illustrated, there are two variations; Stub Via A and Stub Via B.

For the Stub Via A example, it shows the through portion starting from the top layer and ending at some inner layer. The stub portion is the remaining portion continuing from the inner layer junction to the bottom layer.

The Stub Via B example shows the through portion  originating from one internal signal layer and terminating on another internal signal layer. In this scenario, there are two stubs. The first stub is from the first internal layer junction to the top layer; the second stub is from the second internal layer junction to the bottom layer.

Through Via

imageThrough vias are the oldest and simplest via configurations originally used in 2-4 layer PCB designs. Since the signals originate and terminate from the outer layers of the PCB, there are no stubs. In multi-layer PCB applications, they are an inexpensive way to eliminate the resonance effects caused by stubs where other mitigation techniques are not practical or are too expensive.



Blind/Buried Via

imageBlind and buried vias are just like any other via, except  they do not go all the way through the PCB. A Blind Via connects one or more internal layers to only one external layer. Controlled-depth drilling is used to form the holes prior to plating.

A buried via, on the other hand, is a plated hole which is completely buried within the board. It connects one or more internal layers and does not connect to an external layer. Using buried via technology is costly because the inner layers being interconnected need to be fully fabricated and plated before final lamination of the entire PCB.

A micro-via is a form of blind via. Because the holes are so small (0.006 inches or less), they are formed using lasers, and cannot penetrate more than one or two layers at a time. They are most commonly used in high-density PCB designs like cell phones, or in FPGA and custom ASIC chip packaging.

Back-drilled Via

imageHigh speed point-point serial link based backplanes are often thick structures; due to the system architecture and card-card interconnect requirements. Back-drilling the via stub is common practice on thick PCBs to minimize stub length for bit-rates greater than 3Gb/s.

Back-drilling is a process to remove the stub portion of a PTH via. It is a post-fabrication drilling process where the back-drilled hole is of larger diameter than the original PTH. This technology is often used instead of blind-via technology to remove the stubs of connector vias in very thick high-speed backplane designs. State of the art board fabrication shops are able to back-drill to within 8 mils of the signal layer to keep, so there will always be a small stub portion attached to the via.

Back-drilling is not without limitations. Smaller vias and tighter pitch driven by large pin count BGA packages makes back-drilling impractical in these applications; due to drill bit size and tolerance issues. Fortunately, smaller via diameters limit the maximum PCB thickness due to aspect ratio; thereby limiting the length of the stub to the board thickness. Careful planning the high-speed layers within the stack-up is one way to control stub length.

imageWe worry about stubs in high-speed designs because they cause unwanted resonant frequency nulls which appear in the insertion loss plot of the channel. If one of these frequency nulls happen to line up at or near the Nyquist frequency of the bit rate, the received eye will be devastated resulting in a high bit-error-rate; even link failure.  A shorter stub length means these resonances will be pushed out further in frequency; ideally past the 5th harmonic of the Nyquist frequency as a rule of thumb.

Rules of thumb, in general, are no substitute for actual modeling and simulation. You should never depend on them to sign-off the final design; but you can use them to gain some intuition before hand. With that in mind, you can estimate the maximum stub length in inches using the following equation:


Where:

L Stub_max = maximum stub length in inches.

Dkeff = effective dielectric constant of the material surrounding the via hole structure.

BR = Bit rate in GB/s.

For example, the maximum stub length at 5GB/s should be less than 0.120 inches in FR4 material with a Dkeff of 4.0 to ensure the first resonant frequency null is greater than 5 times the Nyquist frequency of the bit rate. If the stub length is greater than this, it does not mean the design will not work at 5GB/s. Depending on just how much longer it is means there will be less than optimum eye opening at the receiver.

If you know the length of the stub, you can predict the fundamental resonant frequency, using the following equation:


Where:

Stub_len = stub length in inches.

fo = fundamental resonant frequency in GHz

So, using the same  Dkeff of 4.0, and stub length of 0.120 inches, we calculated in the above example, the first resonant frequency null would occur at approximately 12.3 GHz. If we assume this is the 5th harmonic, then the Nyquist frequency is approximately 2.5GHz and the bit rate is 5Gb/s; which is where we started.

Written by Bert Simonovich

February 15, 2011 at 1:29 pm

PCB Cross-sectional Geometries

leave a comment »

PCB cross-sectional geometries describe the details of the dielectric substrates, traces and reference planes within a PCB stack-up.  Their physical relationship with one another can then be used to predict the characteristic impedance of the respective traces. There are only three generic cross-sectional geometries with variations within each. They are:

  • Coplanar
  • Microstripline
  • Stripline

Coplanar:

imageCoplanar geometry, or sometimes called coplanar waveguide (CPW), is a signal conductor sandwiched between two coplanar reference conductors or planes. These reference planes are usually ground. The characteristic impedance is controlled by the signal trace width and the gap between it and reference planes. This is a common transmission line structure for RF and microwave designs using single-sided printed circuit board technology. As a rule of thumb, the width of the reference plane on each side of the signal trace should be at least five times the distance between the left and right plane.

Microstrip line:

The microstrip line is the most popular transmission line geometry used in two or four layer printed circuit boards. The characteristic impedance is controlled by the signal trace width, on one side of the substrate, and the thickness of the substrate to the reference plane below it. The embedded microstrip line has the signal trace covered with prepreg or other dielectric material.

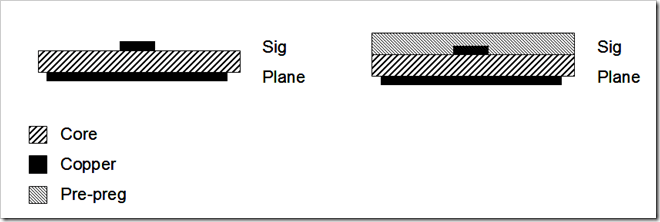

Cross section views below showing Microstrip line (left) and embedded microstrip line (right).


Stripline:

Cross section views below shows an example of single stripline (left) and dual stripline (right) geometries. These are geometries are typically found in multi-layer PCBs of 6 layers or more.  The characteristic impedance is controlled by the trace width, thickness and its proximity to the reference planes above and below.

Single stripline has one signal layer sandwiched between two reference planes. If the signal layer is exactly spaced between the two reference planes, the geometry is called a symmetrical stripline; as opposed to an asymmetrical stripline, where the signal trace is offset from the center of the cross-section.

Dual stripline geometries have two signal layers sandwiched between reference planes, and are mainly used to save layers; caveat is a trace on one layer is routed orthogonal to the trace on the other  to mitigate crosstalk.


Differential Pair Geometry:

Differential signaling is when a signal and its complement are transmitted on two separate conductors. These conductors are called a differential pair. In a PCB, both traces are routed together with a constant space between them as edge-coupled or broadside-coupled.

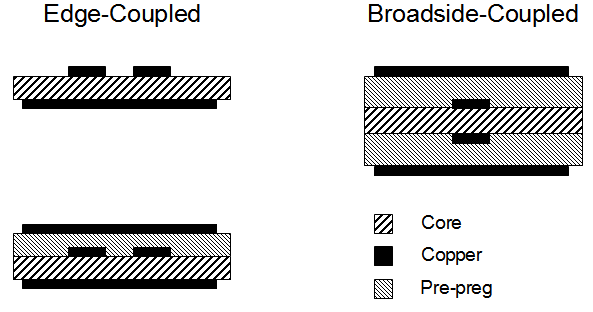

imageEdge-coupled routes the traces side-by-side on the same layer as microstrip or stripline. The advantage is that any noise on the reference plane(s) is common to both traces and thus cancelled at the receiver. Most differential pairs are routed this way.

Broadside-coupled routes one trace exactly over the other on 2 separate layers as dual stripline. Since each trace is more tightly coupled to its adjacent reference plane than the opposite reference plane, any noise on the planes will not be common to both traces and thus, will not be cancelled at the receiver. Because of this, and the fact that it usually results in a thicker PCB, this geometry is rarely used.

Odd-Mode Impedance:

imageConsider a pair of equal width microstrip line traces, labeled 1 and 2, with a constant spacing between them. Each individual trace, when driven in isolation, will have a characteristic impedance Zo, defined by the self-loop inductance and self-capacitance of the trace with respect to the reference plane.

When a pair of traces are driven differentially, the mode of propagation is odd. If the spacing between the transmission lines is close, there will be electromagnetic coupling between the two traces. This coupling is defined by the mutual inductance and capacitance.

The proximity of the traces to a reference plane(s) influences the amount of electromagnetic coupling between traces. The closer the traces are to the reference plane(s), the lower the self-loop inductance, and the stronger self-capacitance to the plane(s); resulting in a lower mutual inductance, and weaker mutual capacitance between traces. The result is a lower differential impedance.

A 2D field solver is usually used to extract the parameters for a given geometry. Once the RLGC parameters are extracted, an L C matrix can be set up as follows:


The self-loop inductance and self-capacitance for trace 1 and 2 are L11, C11, L22, C22 respectively. The off diagonal terms in each matrix, L12, L21, C12, C21, are the mutual inductance and mutual capacitance. We use the LC matrix to determine the odd-mode impedance.

The odd-mode impedance is the impedance of one trace, of a differential pair, when driven differentially. It can be calculated by the following equation:


Where:

Zodd = odd mode impedance

Lo = self-loop inductance = L11 = L22

Co = self-capacitance = C11 = C22

Lm = mutual inductance = L12 = L21

Cm = mutual capacitance = |C12 |=|C21|

Even Mode Impedance:

When current flows down both traces, of the same polarity, the mode of propagation is even and the coupling is positive. The even mode impedance can be calculated using the following equation:


Differential Impedance:

The differential impedance is twice the odd-mode impedance:


Average Impedance:

When current flows down two traces randomly, as if they were single-ended, the mode of propagation is a combination of odd and even. The average impedance of each trace is affected by its proximity to the adjacent trace(s); calculated by the following equation:


Coupling Coefficient:

The coupling coefficient, Kcc, is a number that conveys the amount of electromagnetic coupling between two traces. Knowing the odd and even mode impedances, Kcc can be calculated by the following equation:


Backward Crosstalk Coefficient:

Two traces near one another will couple a portion of its own signal to the other. If we consider one trace as the aggressor, and the other as the victim, the amount of coupled noise travelling backwards on the victim’s trace, opposite to the aggressor’s direction, is called Near-End crosstalk (NEXT) or backwards crosstalk. The amount of coupled noise, travelling in the same direction as the aggressor’s direction, is called Far-End crosstalk (FEXT).

In stripline, there is little to no FEXT, but backwards crosstalk will saturate to a fraction of the amplitude of the aggressor’s voltage for the length of time the traces are coupled. This fraction of the aggressor’s voltage is  called the backward crosstalk coupling coefficient Kb. It is equal to one half of the coupling coefficient Kcc :


Example:

A 8-9-8 mil differential pair; with 12mil core; 12 mil prepreg; Dk=4; stripline geometry; 1/2 oz copper; has the following R L G C matrix extracted from a 2D field solver:








If the two traces are driven differentially, then the differential impedance is 100 Ohms and there is 14% coupling of the two traces. On the other hand, if the traces are driven single-ended then the characteristic impedance of each trace is 57 Ohms. With 9 mils of space between them, the backward crosstalk is 7%.

If you increase the spacing between traces until Zodd equals approximately Zeven, the coupling will reduce to near zero, and there will be little backward crosstalk. For this particular geometry, increasing the space to 50 mils gives Zodd = 61.5 Ohms and Zeven = 61.7 Ohms for Kb = 0.07 %. Depending on your design and your noise budget, you may be able to live with a certain amount of backwards crosstalk. The only way to know the spacing between traces to achieve the budget is to plug in the numbers.

Acknowledgment:

I would like to thank my old Nortel colleague, Dick Goulette for sharing these equations many years ago. They have served me well over the years.

Written by Bert Simonovich

February 7, 2011 at 7:52 pm
